Rabel 62 Super Thermal
Minimal / Super Slim Sliding System up to 6 meters

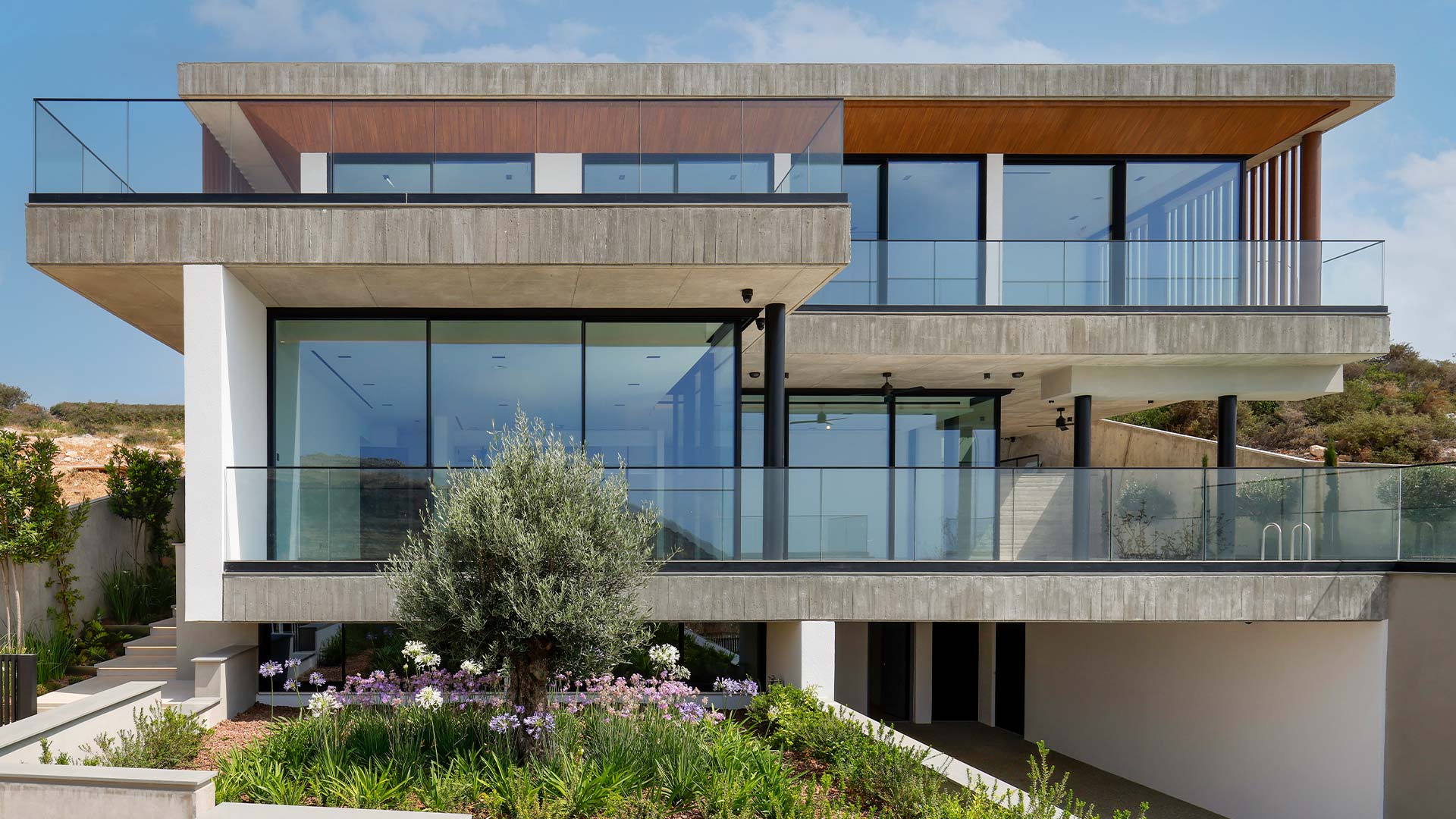

Rabel 62 Slim Super thermal is a slim system designed for minimalistic buildings with large openings and various typologies. The visible size of the middle post has been reduced to 26mm while keeping a high level of weather performance. Although the majority of the systems in the market at 26mm are based on non- thermal middle post profiles, the RABEL 62 innovative design has managed to achieve a super thermal performance also at the middle post.
READ MORE...Through the use of internal and external fins it has been made possible to reach heights up to 6 meters. The system comes with a series of rollers made out of stainless steel capable of withstanding up to a leaf weight of 1200 Kg. The locking system is comprised of 6 different options. In these options a multiple locking system as well as an access control from the exterior via a key is provided so as to cater for all possible needs.
Five different threshold designs are available in two different heights (40, 57mm) making it possible to have an exposed or fully submerged threshold. Optionally the threshold comes with an integrated drainage channel which allows the track to be fully recessed into the floor while increasing the water permeability. The water extraction can also be facilitated through pipes directly installed on the track so that a drainage gutter is no longer required.
Being a state-of-the-art product suited for special projects it is customisable to make a variety of uncommon typologies like sliding + fixed frameless, sliding + hinged, Sliding + Spider/Curtainwall etc. while always keeping the dimensions slim. It is also able to do corners without post and combo configurations like sliding integrated with railing and shading devises both internal and external.
Technical Specifications
| Technical characteristics | ||
| Frame Visible Width | 40 / 57 mm | |
| Sash Depth | 59 mm | |
| Sash Visible Width | 26 / 30 / 39 / 55 mm | |
| Center Mullion Width | 26 mm | |
| Type | Progressive | |
| Max. Weight per Sash | 600* Kg | |
| Glazing Width Possibilities | 32 mm | |
| Maximum Locking Points | 6 | |
| Thermal Break Width | 30 / 53 mm | |
| Sealing Type | Brush with Cloth + Q-Lon | |
| * The maximum dimensions of the construction are determined by the manufacturer according to the typology and conditions of the project | ||
Performances | ||
| Fabrication Thermal Transmittance EN ISO 10077-2 (Uw) | ≥1.3 W/(m2K) | |
